What is Grating Used For? Understanding Great Types and Applications

Grating is an important factor in many fields, providing advantages and various application possibilities. Whether it is a matter of preventing accidents in the industrial sector, enhancing the aesthetics of architectural designs, or supporting infrastructure projects, grating can be called upon as a trustworthy remedy in various settings. This article takes the reader into the realm of grating, presents the types available, and their various applications. It will also help the reader better understand the usefulness of grating and identify the right type of grating for their needs. Prepare yourself to discover the interesting overlaps between function, longevity, and design. Find more info now.

Introduction to Grating

Grating is a construction framework formed by crossing and putting together parallel bars, and its major use is for the providing of support and safety so it has become a common practice in various industries. The main goal of grating is not only to provide a strong and durable surface but also to allow the free passage of air, light, and liquids. Grating is made from different materials such as steel, aluminum, or fiberglass in which case its use is very versatile and it is also resistant to harsh conditions. The major applications for grating are found in industrial and commercial environments where it is a very essential component, and these include flooring, walkways, stair treads, and ventilation covers. Grating is a very simple item yet extremely powerful since it brings together functionality and strength in many of the practical applications.

What is Grating?

Grating is a systematic configuration of horizontally situated bars or crossbars made of strong materials like steel, aluminum, or fiberglass. These materials create a functional surface of high strength that permits air, water, and safety in various industrial and commercial sectors.

Types of Grating

There are various types of grating and each is customized according to the requirements of specific applications. The following list illustrates the most common types of gratings that are still widely used in industries today:

1. Steel Grating

Steel grating is one of the most popular types because of its outstanding qualities and long-lasting nature. It is usually made of either mild or stainless steel. Steel gratings are very suitable for heavy load applications including walkways, platforms, and stair treads that are in between industrial plants and construction sites. The most recent market study suggests that galvanized steel grating is the best-selling type and it represents about 50% of the worldwide market because of its excellent resistance to rust and minimum care needed.

2. Aluminum Grating

Aluminum Grating is chosen for its lightweight quality and resistance to acid and rust. This type is often encountered in places with moisture or chemicals, including marine, wastewater, and chemical industries. Providing the best combination of lightweight and strong support, it gives full installation convenience and reduces the load on the structure which is why it is loved in modern engineering projects.

3. Fiberglass Grating (FRP Grating)

Fiberglass Reinforced Plastic (FRP) grating is valued for its anti-corrosive and non-conductive features, and its high strength-to-weight ratio is also a factor. It is an option for such places that have harsh chemicals or electrical hazards like power plants or water treatment facilities. The market is showing that FRP is gaining more and more acceptance which is indicated by the 4.5% CAGR growth rate in the last five years; the industries that aim to be metal-free are a driving force behind this trend.

4. Pressed Grating

Pressed grating involves pressing crossbars through bearing bars to create a strong grid structure. This type is pleasing to the eye and it is chosen for architectural reasons like exterior cladding, building facades, and pedestrian areas.

5. Serrated Grating

Serrated grating consists of cut or roughened edges, which increase the resistance to slipping. It can thus be used in places where oil, grease, or water conditions might cause slipping such as offshore platforms or food processing plants. While the design provides safety for the workers, the necessary load-bearing characteristics are also present in the industrial operation.

6. Heavy-Duty Grating

Heavy-duty grating is designed so that it can bear very large loads, including those caused by vehicles moving around docks, warehouses, and transport hubs. A common feature of these gratings is the use of thick steel that has very high bearing capacities and thus provides stability and durability.

It is possible to further adapt each of the grating types in size, material, and coating to meet the needs of the specific industry which is why it can be said that the material is everywhere for engineering and safety applications.

Materials Used for Grating

The choice of grating material is mainly determined by the application's requirements and the surrounding conditions. The most popular materials used for grating are:

1. Steel Grating:

Steel is the king of grating and is used the most because it is super strong and can carry a lot of weight. Its types include mild steel, carbon steel, and galvanized. Galvanized steel grating is the one that provides the highest resistance to corrosion and is therefore suitable for both outdoor and industrial environments. Steel grating is often used in very heavy-load areas such as bridges, industrial plants, and sea ports.

2. Aluminum Grating:

Aluminum grating attracts attention due to its lightness and its resistance to rust, which makes it perfect for places where reducing weight is the main concern, such as marine settings, ships, and chemical facilities. Besides being lighter than steel, aluminum grating still comes with a very good strength-to-weight ratio.

3. Stainless Steel Grating:

Stainless steel grating is the king of the hill when it comes to durability and resistance as it simply won't corrode even if the conditions are hard, for example, food processing plants, pharmaceutical facilities, and wastewater treatment plants. Moreover, it stands out for its aesthetic finish and ability to handle heavy washing chemicals.

4. FRP/GRP Grating (Fiberglass/Glass Reinforced Plastic):

FRP or GRP grating is a synthetic mix of resin and fiberglass. It is really good at resisting corrosion, has a light structure, and plus, it gives a non-slip surface, hence it's very appropriate for offshore platforms, water treatment, and chemical-exposed areas. Moreover, being a non-conductive material, it provides electrical safety in some applications.

5. Plastic Grating:

Plastic or polymer grating is a low-cost option in places where there are not many load-bearing requirements. It is widely used in areas that need to be chemical and moisture resistant, such as swimming pool decks and drainage channels.

Comparison Data (Based on the Latest Industry Insights)

By selecting the right material, industries can maximize safety, durability, and efficiency based on the specific project or environment.

Applications of Grating

Gratings have become an essential material in many applications because of their diverse uses and functions. Among those, the main five uses are indicated below.

• Industrial Walkways

Gratings are standard everywhere, especially in oil and gas, manufacturing, and chemical industries. The non-slip coating and load-bearing capacity of gratings make workers safe while being considerate to the environment and the materials.

• Drainage Covers

Gratings are perfect for covering urban drainage systems, factory waste systems, and public area drainage systems. Their resistance to moisture and water retention makes them a good option for eco-friendly surface water management.

• Offshore Platforms

Gratings are commonly used in the offshore oil drilling industry. FRP gratings are the most preferred type because of their resistance to chemicals, lightness, and non-skid surface even in tough sea areas.

• Food Processing Facilities

Stainless steel gratings are preferred in the food and beverage industries for their corrosion resistance and sanitation properties. They are used in production, cleaning, and storage areas to uphold sanitation and safety.

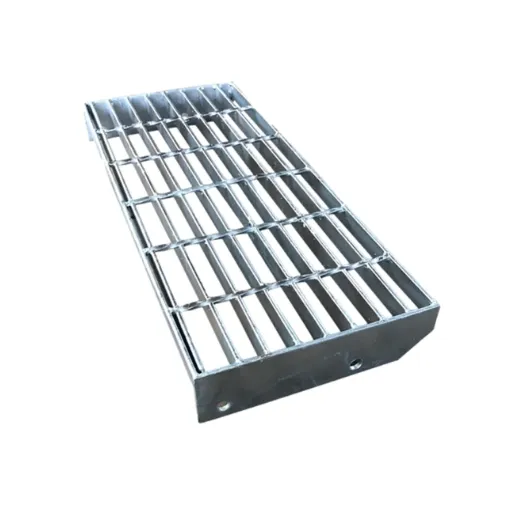

• Stairs and Ramps

Gratings are an effective solution for stairs and ramps in commercial, industrial, and public buildings. Their strong, durable, and non-slip surface not only ensures user safety but also protects the building from wear and tear.

Grating Used in Industrial Applications

Grating is an important and necessary component in various industrial applications, providing good functionality, safety, and long-term durability. Its strength and flexibility make it the best choice for various industries such as oil and gas, manufacturing, power plants, and wastewater treatment facilities.

• Oil and Gas Industry

Among others, steel grating is most commonly found in offshore platforms, refineries, and drilling sites. Steel grating's high load-bearing capacity, environmental resistance, and anti-slip properties ensure safety and efficiency at all times, even under highly demanding conditions. Based on recent market forecasts, the global demand for steel grating in oil and gas is estimated to rise considerably, with a CAGR of around 4.5% between 2023 and 2030, largely due to increased energy production and rising safety standards.

• Manufacturing Plants

Gratings are the most common solutions in machine platforms, catwalks, and mezzanine flooring. They allow great air circulation and prevent the build-up of dust and dirt. Modern trends indicate that lightweight aluminum gratings are increasingly popular in industries prioritizing weight reduction while still requiring strength.

• Power Generation Facilities

Grating systems are an indispensable need in power generation plants, particularly thermal and nuclear, for cooling platforms, turbine access, and maintenance walkways. The high thermal resistance of galvanized steel gratings ensures longevity in extreme heat environments, maintaining operational efficiency.

• Wastewater Treatment Plants

Corrosion-resistant fiberglass-reinforced plastic (FRP) grating is becoming increasingly popular in the wastewater treatment plants sector. It is because of its ability to resist chemical exposure and moisture, while also providing a non-slip surface crucial for worker safety. A recent study revealed that FRP grating Adoption has grown by 5% per year in this industry.

• Mining Industry

Grating fulfills various needs in mining,like conveyor walkways, crushing stations, and work-over platforms. The welding of steel grating supports high loads, fulfilling the rigorous demands of mining operations while maintaining safety with its anti-slip features, even in wet or muddy places.

Statistical Insights

The global grating market was worth around $267 million in 2022, and it is expected to grow considerably, mainly due to industry expansion and further advancements in materials technology. The central part of the market is occupied by steel grating, which is responsible for over 60% of the total demand. Moreover, the use of sustainable materials like FRP is expected to increase as manufacturers strive to meet environmental standards and enhance eco-friendliness.

With ongoing innovations in materials, coatings, and designs, industrial gratings have become a major architectural and functional aspect, contributing to the operational success and safety of various sectors.

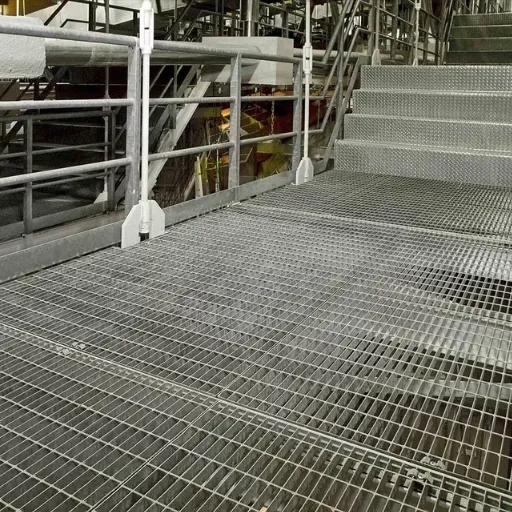

Grating for Walkways and Floors

Grating for walkways and floors is a crucial element in industrial, commercial, and residential areas, valued for its strength, safety, and longevity. Industrial statistics reveal that steel grating remains the most preferred material, as it can still cope with the most significant loads and stresses throughout its long life. Besides, both aluminum and stainless steel are chosen for applications requiring corrosion resistance, such as marine or chemical processing facilities, because these metals can withstand abrasive environments longer than other types. Fiber-reinforced plastic (FRP) grating has been making its presence felt in the market like a sleeper, with a gradual compound annual growth rate (CAGR) of 5.2% from 2023 to 2030, primarily due to its lightness and excellent environmental resistance.

The slip-resistant attributes of the walkway and flooring grating are prioritized in the design specifications; thus, even in the most dangerous situations, maximum slip resistance is possible. The application of OSHA guidelines results in a grating with a serrated surface, which significantly reduces the risk of slips and falls, making it suitable for use in industries like oil and gas, power plants, and food processing. The standard panel widths are 2 to 4 feet, allowing for support of different structural requirements. Additionally, custom sizes are available to match the needs of a specific project.

Moreover, the load and span charts provided by the manufacturer assist in compliance with safety regulations by offering critical data to users. Typical gratings support loads up to 7,000 lbs per square foot, depending on the material and design. The advanced coatings, such as galvanized zinc and epoxy, applied to the surfaces of walkways and floors, not only increase their life but also protect them against corrosion and wear.

Gradually, innovations in grating designs led to the development of modular, easy-to-assemble systems, which in turn have hastened installation processes and minimized downtime during maintenance. These features are enabling the widespread adoption of high-performance grating solutions for modern infrastructures across the globe.

Drain Grates and Trench Grating

Types of Metal Grating

Metal grating is a multifunctional material used almost universally in various industries for structures such as flooring, walkways, drainage systems, and industrial platforms. Based on the particular applications, various metal grating options are available, each with its own distinct benefits. The most common types are listed below:

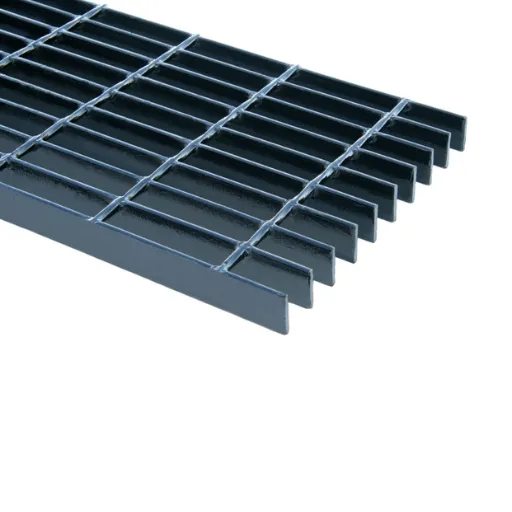

1. Welded Steel Bar Grating

Welded steel bar grating is among the most sought-after choices because of its robustness and lifespan. It is made by joining up beams by welding rectangular bearing bars and crossbars at the intersection points to form a sturdy structure. This type of flooring is perfect for heavy-duty operations such as factory floors and industrial platforms. It usually has a load capacity of up to 7,000 pounds per square foot.

2. Aluminum Grating

Aluminum grating is a super-lightweight, highly corrosion-resistant, and easy-to-handle material, making it ideal for harsh environments exposed to moisture or chemicals, such as marine applications or water treatment plants. Aluminum grating has a load-bearing capacity of about 3,000 to 4,000 pounds per square foot, depending on thickness and design.

3. Press-Locked Steel Grating

Press-locked grating is created by pressing the steel bars together to form a soft and strong surface without welding. This type frequently suits the architectural works because it can be visually customized. It can often be found in pedestrian areas and public places for its neat lines and contemporary look.

4. Stainless Steel Grating

Stainless steel grating is the material of choice for its corrosion resistance and attractive appearance, as it is used in food processing plants, pharmaceutical facilities, and other sterile environments. With its impenetrable surface and resistance to harsh chemicals, it meets the highest industry hygiene standards. It can carry loads from 2,500 to 5,000 pounds per square foot, depending on the construction type.

5. Heavy-Duty Grating

Heavy-duty grating consists of thicker and wider bearing bars to withstand the extremely high loads that are usual in the industrial and transport sectors. Runways for airports, decks for bridges, and platforms for heavy equipment are a few examples. It can easily take up more than 10,000 pounds per square foot of load.

6. Fiberglass Reinforced Plastic (FRP) Grating

FRP grating, although it is not a metal product, at times, it is included among the metal options as it poses similar advantages like being lightweight, corrosion-resistant, and non-conductive. Applications such as electrical hazards or heavy chemical exposure are situations where it is mostly chosen.

Comparison Table of Metal Grating Types

By understanding these different types of metal grating, industries can select the best solution tailored to their specific needs, ensuring both functionality and longevity for their projects.

Aluminum Grating

Aluminum grating is a material that is not only lightweight but also very durable and is mostly used in industrial and commercial sectors. It comes from aluminum alloys that resist corrosion, making it perfect for those places where rust and good weathering characteristics are the top priorities. This kind of grating is mainly appreciated for its superior strength-to-weight ratio, non-sparking feature, and easy installation, making it a versatile material for various industries.

Main Characteristics:

1. Lightweight: Aluminum grating is much lighter than steel, so that the overall structure weight is less and installation is more convenient.

2. Corrosion Resistance: The thin layer of natural oxidation acts as a shield, making it suitable for areas with high moisture, chemical exposure, or even marine environments.

3. Strength-to-Weight Ratio: Aluminum grating, though lightweight, provides good load-bearing capabilities.

4. Non-Sparking: Suitable for areas where flammable or explosive materials are stored or processed, such as oil rigs or chemical plants.

Categories of Aluminum Grating:

1. Press-Locked Grating:

• The manufacturing method involves applying pressure to combine aluminum bars.

• A sleek profile, ideal for architectural projects and public spaces, is the result of this manufacturing process.

• The usual load capacity is from 2,000 to 5,000 lbs/sq. ft.

1. Swage-Locked Grating:

• The main feature of this invention is to strengthen the bond formed by the aluminum bars and rods through the swaging process.

• Characterized by high stiffness and strong support for structure.

• The load capacity can be more than 5,000 lbs/sq. Ft., depending on the thickness of the bar.

1. Grip Strut/Perf-O-Grip Grating:

• These surfaces are equipped with either serrated or perforated designs that provide slip resistance.

• The most suitable place is to use it for walkways, stair treads, and platforms in wet or oily conditions.

Uses:

• Marine Sector: Building ships, offshore platforms, and docks.

• Design Works: The Architectural beauty of its modern look allows its use in facades, sunshades, and ceiling panels.

• Heavy-duty places: Walkways, platforms, and overhead areas in the industrial plant, which are vulnerable to corrosion threats.

Requirements and Care for Long Life:

Aluminum gratings do not require any special maintenance beyond regular cleaning to remove dirt or chemicals. Its anti-corrosive and hard nature work together to give it a long life span, thus decreasing replacement costs.

Industries can achieve both functional and decorative goals through the key features of aluminum grating, while also ensuring the efficiency and safety of their operations.

Steel and FRP Grating

Different Types of Metal Grating

Metal grating is produced in different forms, and each type has its distinct application for different industrial needs and requirements. Here are the five kinds of metal grating with their respective details and features:

• Welded Steel Grating

Welded steel grating is one of the most commonly used types. It is made by welding together the intersecting steel bars, which creates a very durable and strong structure. The grating type is ideal for industrial and commercial settings where strength is a primary concern. Its load-bearing capacity makes it suitable for applications such as constructing platforms, walkways, and stair treads.

• Press-Locked Steel Grating

The press-locked grating consists of crossbars that are mechanically locked into the bearing bars using high pressure. This process not only produces a powerful and stiff panel but also preserves a smooth and elegant-looking surface. The grating has a wide range of applications, especially in architecture, where design and safety are the key factors to consider.

• Expanded Metal Grating

Expanded metal grating is the result of slicing and stretching a metal plate, forming a mesh-like pattern with diamond-shaped openings. Even though it is lightweight, it has a good durability rating and offers good grip. The application of this type of grating usually includes walkways, catwalks, and areas with heavy equipment for slip resistance.

• Aluminum Grating

Aluminum grating is lightweight, non-corrosive, and resilient to chemicals and moist, physically demanding environments. It is applied mainly in the treatment of wastewater, in the manufacturing of chemicals, and in the construction of marine facilities. Its long-lasting nature and low maintenance requirements make it a money-saving choice for a long-term investment.

• Fiberglass Reinforced Plastic (FRP) Grating

The FRP grating consists of fiberglass reinforced plastic and is very strong for its weight, while also being resistant to fire, corrosion, and chemicals. The grating finds its application in the most corrosive environments, such as chemical plants, offshore drilling platforms, and waste treatment facilities. Its non-conductive and non-slip features also make it a safe choice for many applications.

Every metal grating type has its own set of properties and advantages, thereby providing a wide range of selection to industries based on their specific needs and environmental conditions.

Grating Standards and Compliance

Compliance with grating standards is crucial for safety, reliability, and performance to be assured in many fields. The regulations usually come from various organizations like ANSI, ASTM, and ISO, which set the rules for the maximum weight the grating can carry, the kind of materials that can be used, and how long the grating should last. By following these standards, not only is the grating's performance under specified conditions assured but also its safety is guaranteed. Moreover, each sector usually checks regional codes and guidelines to ensure that both environmental and operational aspects are covered. It is always advisable to be sure that the grating products are certified and tested in accordance with the relevant standards for your application.

ADA Compliant Grating

The grating compliant with the ADA (Americans with Disabilities Act) is designed for everyone, including people who are disabled, to provide a safe and accessible surface to walk on. One of the main conditions of the ADA Standards for Accessible Design is that grating openings must not be larger than a sphere with a diameter of 0.5 inches (12.7 mm). Furthermore, the bars or strips that bear the weight must be placed in a way that they create a perpendicular line to the direction of travel and this is mainly done to make the movement for mobility aids like wheelchairs and walkers smoother.

To be able to provide the possibility of mobility, one of the most common ways is to use ADA-compliant grating where the trip hazard is minimized and the grating has a stronger structure. The materials typically used in these gratings are stainless steel, aluminum, and fiberglass because they provide durability and resistance to corrosion in various environments. The installation of these gratings is done in pedestrian walkways, curb ramps, transit platforms, and parking lots.

The data indicate that the use of ADA-compliant gratings will increase the safety as well as the accessibility for all users. For instance, cities with such infrastructure have fewer incidents of injuries due to tripping or mobility challenges. The grating for a project must be selected in accordance with the ADA guidelines to ensure that the designs are not only compliant with legal requirements but also support inclusive infrastructure. Specifications of the products and certificates are readily available from manufacturers to aid in checking the compliance of the products with those standards.

Grating Standards in Industrial Use

The industrial grating must follow stringent standards that will guarantee safety, longevity, and effectiveness in multiple uses. These standards are meant to lessen the hazards in the industry while accommodating heavy-duty machinery and the movement of personnel. Below are five crucial standards that are often referred to in industrial grating applications:

• ANSI/NAAMM MBG 531-20

The specifications for bar grating materials, design, and manufacturing have been provided by the National Association of Architectural Metal Manufacturers (NAAMM) in this standard, which was formulated by them. This helps to maintain a uniformity in grating strength and load capacity for industrial use.

• OSHA Standards (29 CFR 1910 Subpart D)

The Occupational Safety and Health Administration (OSHA) states that grating should be included when defining walking and working surfaces. These surfaces must be slip-resistant and load-bearing as per specifications to avoid workplace injuries.

• ASTM A123/A123M

The specification for the zinc (hot-dip galvanized) coatings applied to iron and steel, including grating products, is mentioned in this standard. It plays an important role in preventing corrosion-induced grating in the industry.

• ISO 14122-2

The International Organization for Standardization (ISO) deals with the guidelines concerning the provision of permanent access for machines. The access would include metal grating stairs, platforms, and walkways, all designed to minimize occupational risks.

• AS/NZS 1657

This standard is most commonly used in industrial applications across Australia and New Zealand, and it makes sure that the design, construction, and installation of grating, platforms, and stairs are all safe and reliable, even in very demanding settings such as oil and gas facilities.

The significance of each standard lies in its role in ensuring that industrial grating systems meet the safety, durability, and performance criteria requirements of specific applications.

Safety and Durability in Grating Design

The grating systems used in the industry need to be designed to be both safe and durable, as these elements will endure the harshest environments and heavy loads. For this reason, manufacturers usually opt for materials such as steel, aluminum, and fiberglass-reinforced plastics due to their strength and corrosion resistance. For example, galvanized steel grating has a zinc coating that prevents rust to a great extent, thereby prolonging the life of the product. The standard reports indicate that galvanized grating can last more than 50 years if maintained properly in less aggressive environments.

Another important feature of grating design is the non-slip surfaces that ensure a safe environment. The latest statistics show that slip-resistant grating used in workplaces can lead to a 25% reduction in slip-related accidents, thus contributing to a safer workplace. The treads that have serrated surfaces or are textured through molding do not easily lose their grip even under wet or oily conditions thus reducing risks even further.

Grating systems of the present day are capable of taking up specific loads, so that even in the case of extreme stress, the structural integrity of the building is not compromised. As an illustration, heavy-duty steel grating is designed to support well over 7,000 pounds per square foot, making it suitable for various industries such as platforms, walkways, and crossover bridges.

Moreover, durability and low maintenance are associated with each other in industrial grating systems. Fiberglass-reinforced grating requires less maintenance effort than metal ones, since it is immune to corrosion, rust, and mildew. The very same qualities make it perfect for areas with high moisture, chemical, or saltwater exposure.

The combination of advanced materials and design practices in grating systems not only meets safety regulations but also significantly decreases risks in industrial areas. In addition, regular inspections and compliance with standards like AS 1657 and OSHA guidelines further reinforce the vital safety and durability of these systems.

Frequently Asked Questions (FAQ)

What is Grating Used for in Industrial Applications?

Grating is widely accepted in industrial applications primarily for providing access and control over liquids to drains, ensuring necessary ventilation while maintaining a safe walking surface. Gratings are typically made of fiberglass, carbon steel, and aluminum, which gain their place based on various properties such as moisture resistance or the strength-to-weight ratio.

How is Floor Grating Made and What are Its Uses?

Floor grating is made of different materials such as fiberglass and steel, which give it the properties of slip resistance and load bearing. It is an area made of high-traffic people, ensuring safety & longevity. Different floor grating types are installed for specific functions, e.g., in factories or commercial buildings.

What are the Different Types of Grating Available?

The market offers numerous styles of grating, like bar type, expanded metal, and fiberglass grating. The ultimate use of each style is determined by the specific requirements of the application, such as bearing capacity, drainage solution, and resistance to slipping. The selection of grating type is done after thorough analysis of the application and surrounding conditions.

How Does Grating Provide Drainage Solutions?

Grating is used to make drainage covers that allow liquids to pass easily while preventing pipes from being blocked by trash. This is of great importance in industrial settings where accidents and floods are very likely to occur. Having proper drainage solutions is a matter of safety and cleanliness in working areas.

What is the Importance of Corrosion Resistance in Grating?

Corrosion resistance is an essential aspect of grating materials, especially in cases where there are fluids with harsh chemicals or water. Fiberglass and galvanized steel are the two main choices because they can fight off corrosion, which in turn extends the life of the grating, making maintenance costs a non-issue.

What are the Applications of Bar Grating?

Bar grating is used every day in a variety of applications, including walk paths, stair treads, and drainage covers. The construction provides the necessary strength and durability, but at the same time a safe walking surface. Depending on the purpose, bar grating can be made from a variety of metals, i.e., carbon steel and aluminum.

How Does Grating Contribute to Safety in Industrial Settings?

Grating is one of the main contributors to safety in the industrial sector, where it is frequently used. Its anti-slip surface is especially helpful in preventing accidents in areas where spills might occur. Besides that, safety grating can take heavy loads while allowing proper drainage and ventilation, and thus should be viewed as an essential aspect of workplace safety.

What Should You Consider When Selecting the Right Grating?

Choosing the right grating requires considering several factors, such as the type of material, load distribution capacity, and environmental conditions. Different varieties of metal and grating types exist, each designed to meet unique requirements, providing safety and functionality in specified industrial and commercial areas.
